Nguồn gốc:
Hành Thủy, Hà Bắc, Trung Quốc
Hàng hiệu:
Heng Yuan
Chứng nhận:
ISO9000
Số mô hình:
8-5/8"
Liên hệ chúng tôi
| Attribute | Value |
|---|---|

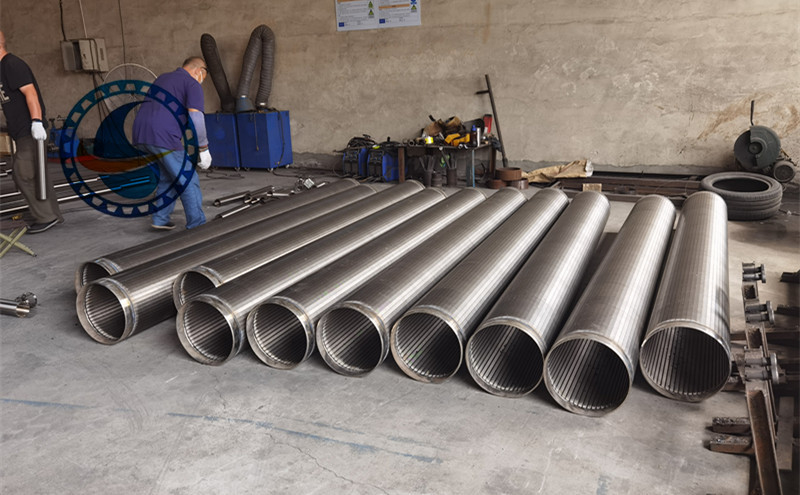

| Name | Johnson Water well screens |
| Material | Stainless steel |
| Diameter | 219mm |
| Length | 5800mm |
| Slot size | 1.0 mm |
| Wrap wire | 3.0×4.6mm |
| Support rod | ø4.0mm |
| NO. of rod | 48NOS |
| End connection | Welded rings |
| Weight | 110KG/piece |
| Package | Plastic film |
| Use | In water wells for sand control |
Every Johnson water well drilling project is different and requires specific well-completion tools to ensure maximum production efficiency while controlling costs. Our premium water well screens are designed for optimal sand control and fluid flow in demanding well environments.
As a leading manufacturer of well-completion equipment, we produce a comprehensive range of sand control screens and accessories including:
Our patented sand screen technology utilizes Direct Wrap and swaging principles to eliminate gaps between layers, delivering superior mechanical properties while providing high flow rates and optimal open area for exceptional sand control performance.
| Sizes (inch) | OD (mm) | Slot (mm) | Length (m) | Tensile Strength | Collapse Strength | Wrap wire Vee-shaped wire (mm) | Support rod Round wire (mm) |
|---|---|---|---|---|---|---|---|
| 3-1/2 | 88.9 | 1.0 | 2.9 | ＞22 | 10.2 | 2.0*3.5(Width*height) | ø3.8MM×22 |
| 4-1/2 | 114.3 | 1.0 | 2.9 | ＞28 | 11.5 | 2.0*3.5(Width*height) | ø3.8MM×22 |
| 6-5/8 | 168.3 | 0.75 | 5.8 | ＞40 | 12.8 | 2.0*3.5(Width*height) | ø3.8MM×32 |
| 6-5/8 | 168.3 | 1.0 | 5.8 | ＞33 | 12.8 | 2.2*3.5(Width*height) | ø3.8MM×32 |
| 6-5/8 | 168.3 | 0.63 | 5.8 | ＞83 | 45 | 3.0*6.0(Width*height) | ø6.0MM×32 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | ＞34 | 21.9 | 2.2*3.5(Width*height) | ø3.8MM×48 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | ＞50 | 38.2 | 3.0*4.6(Width*height) | ø4.0MM×48 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | ＞60 | 46 | 3.0*6.0(Width*height) | ø5.0MM×48 |
Our technical team includes expert design engineers, welders, and support personnel with extensive experience in manufacturing and deploying downhole screens for diverse applications.
