Nguồn gốc:
Hà Bắc, Trung Quốc
Hàng hiệu:
Heng Yuan
Chứng nhận:
ISO9000
Số mô hình:
HY072609
Liên hệ chúng tôi
| Attribute | Value |
|---|---|
| Name | Wedge Wire Screen Panels |
| Material | Stainless steel 316L, 304, 321, 2205, 2507 |
| Slot size | 0.025mm-100MM |
| Video outgoing-inspection | Provide |
| Filter rating | 75% |
| Hole shape | Slot |
| Business type | Manufacturer |
| Technique | Wedge wire, wire wound |
| OEM | YES |
| Feature | Easy leakage, non-clogging, wear resistance, corrosion resistance |

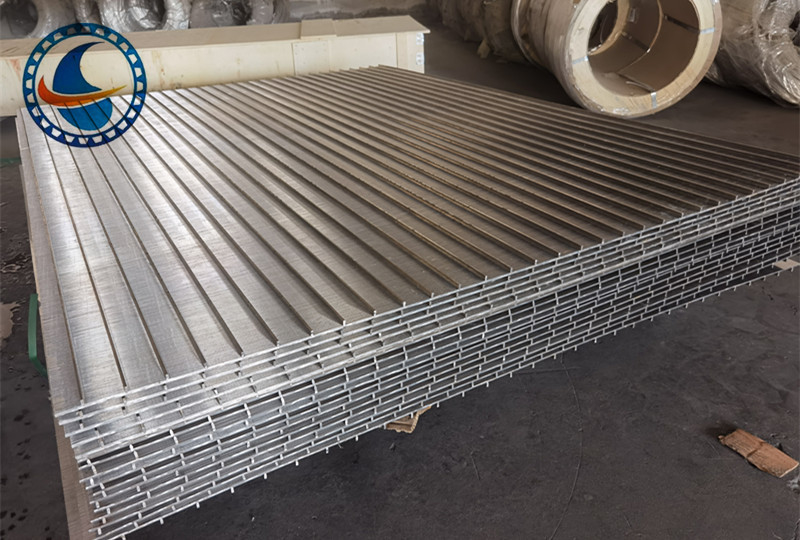

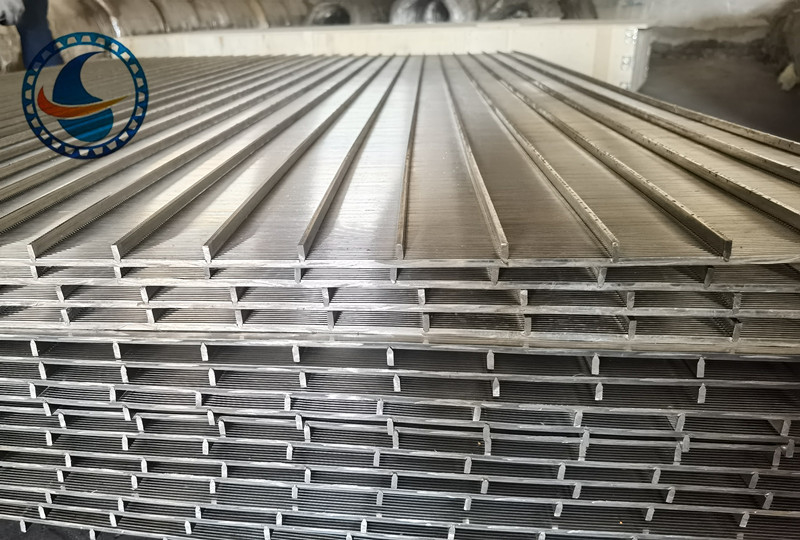

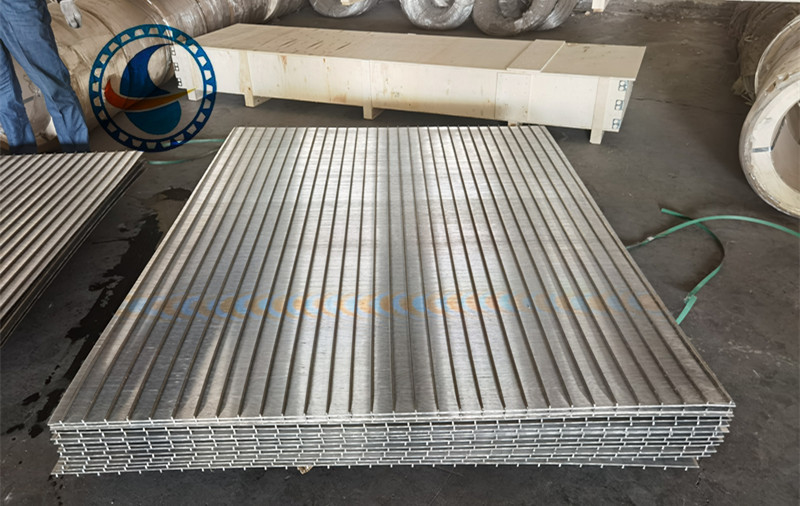

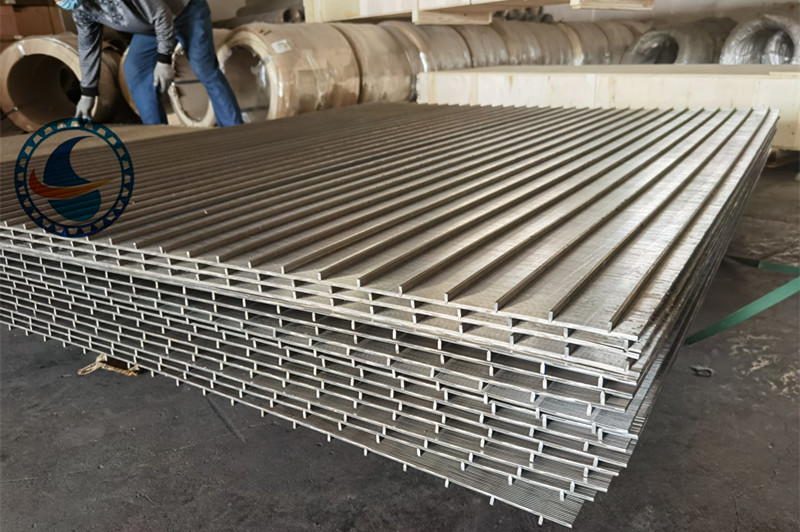

Wedge wire welded panel consists of V shape profile wire and the longitudinal support rods. Each intersecting point the V shape section panel can avoid blockage, and make sure of the unimpeded water.
The consecutive slot have more open area, and it can reduce the speed of the water entering to of these wires is fusion welded, so it has sturdy construction and good mechanical property. Avoid the sand entering the screen under the great pressure, so it can filter sand better. Meanwhile, the slot can change according to the real condition of the earth.
If you are interested in our product, please contact us for more information.
Material: stainless steel 302, 304, 316, 304L, 316L etc.
Slot: 0.025mm - 100mm
Discrepancy: + / - 0.05mm
Dimension: width up to 3000 mm, length up to 4430mm
| Wire Shape | V | V | V | V | V | V |
|---|---|---|---|---|---|---|
| Width(mm) | 1.0 | 1.2 | 1.5 | 2.0 | 2.2 | 3.0 |
| Height(mm) | 2.0 | 2.0 | 2.0 | 3.5 | 4.5 | 4.6 |
| Rod Shape | V | V | V | V | V | O |
| Width(mm) | 2.0 | 2.2 | 3.0 | 3.0 | 3.2 | Diameter |
| Height(mm) | 3.0 | 4.5 | 4.6 | 5.0 | 6.0 | 3.0~3.8 |
